Medical Devices

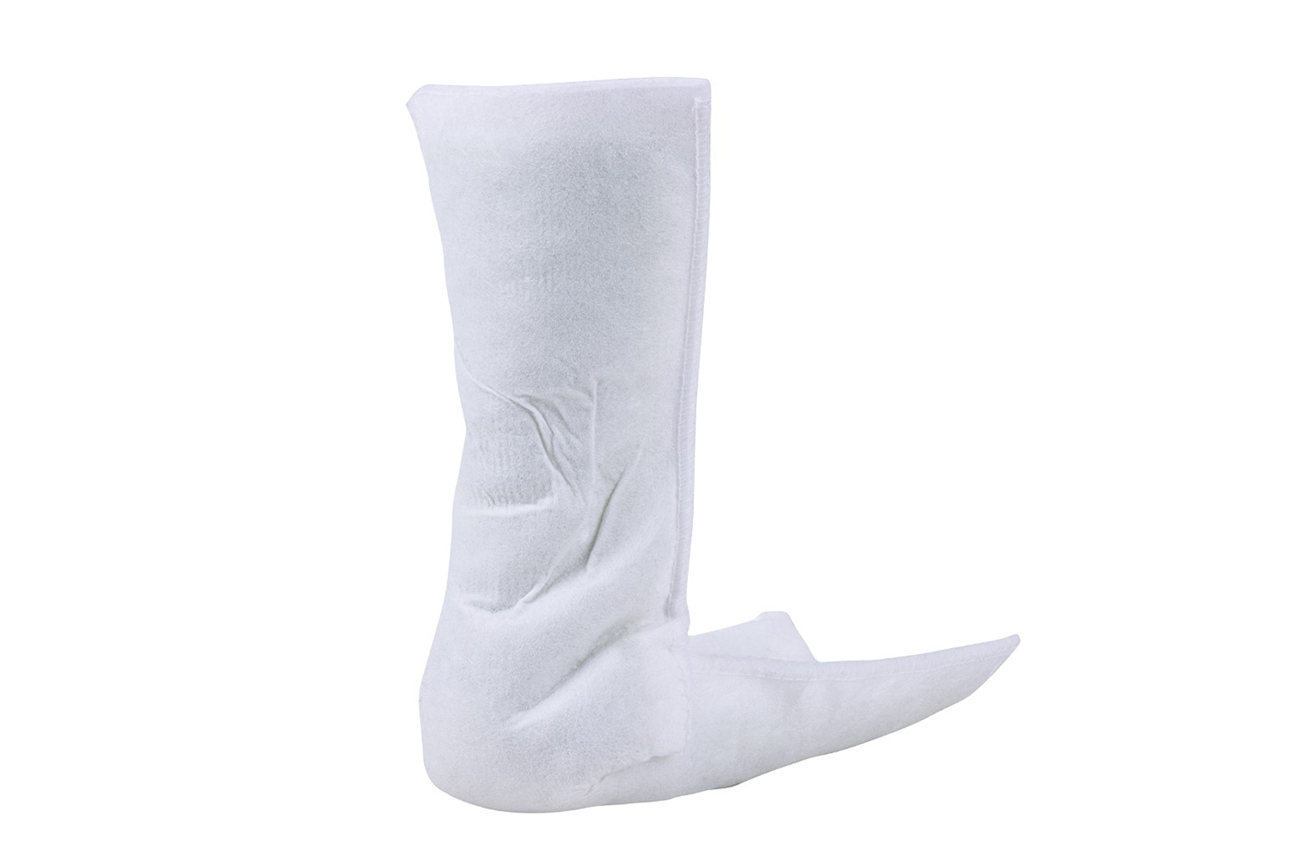

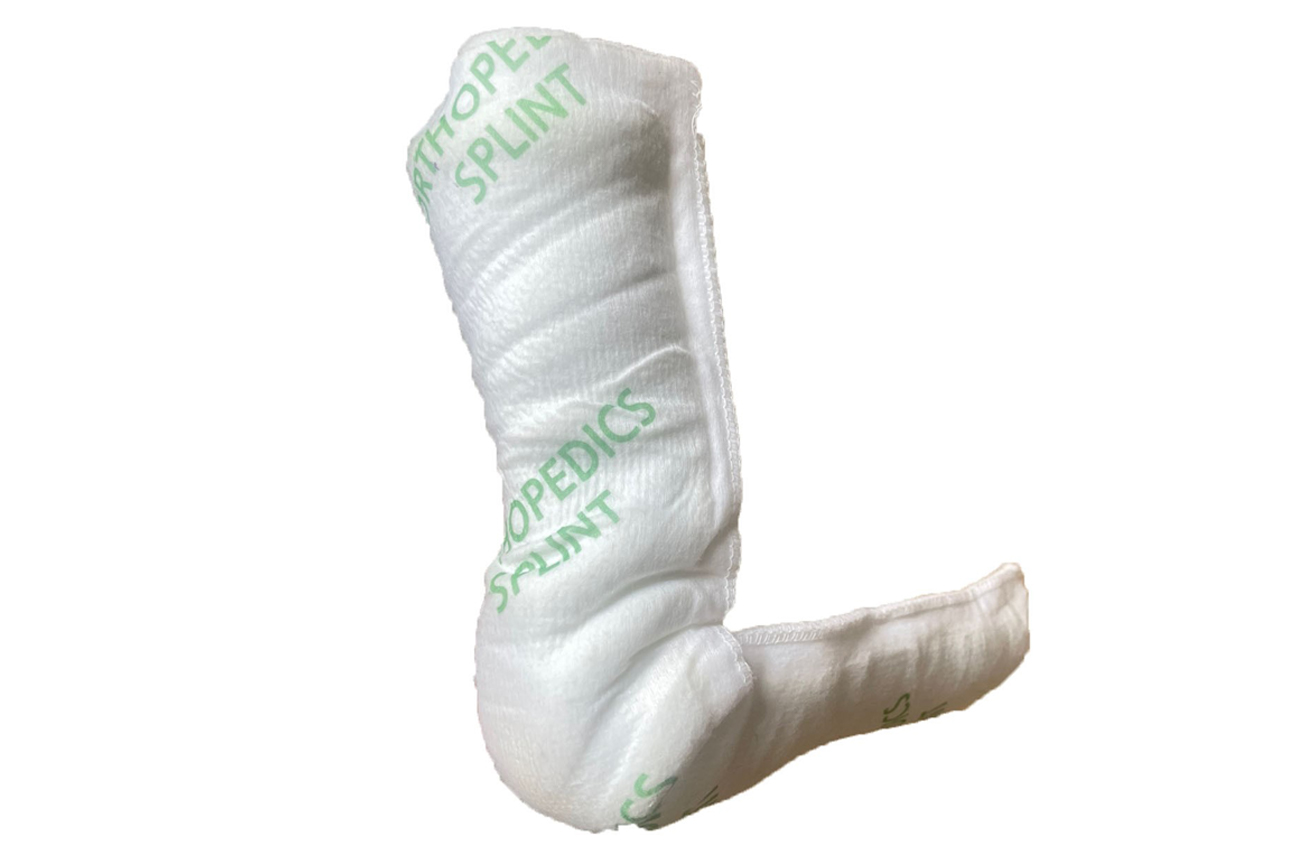

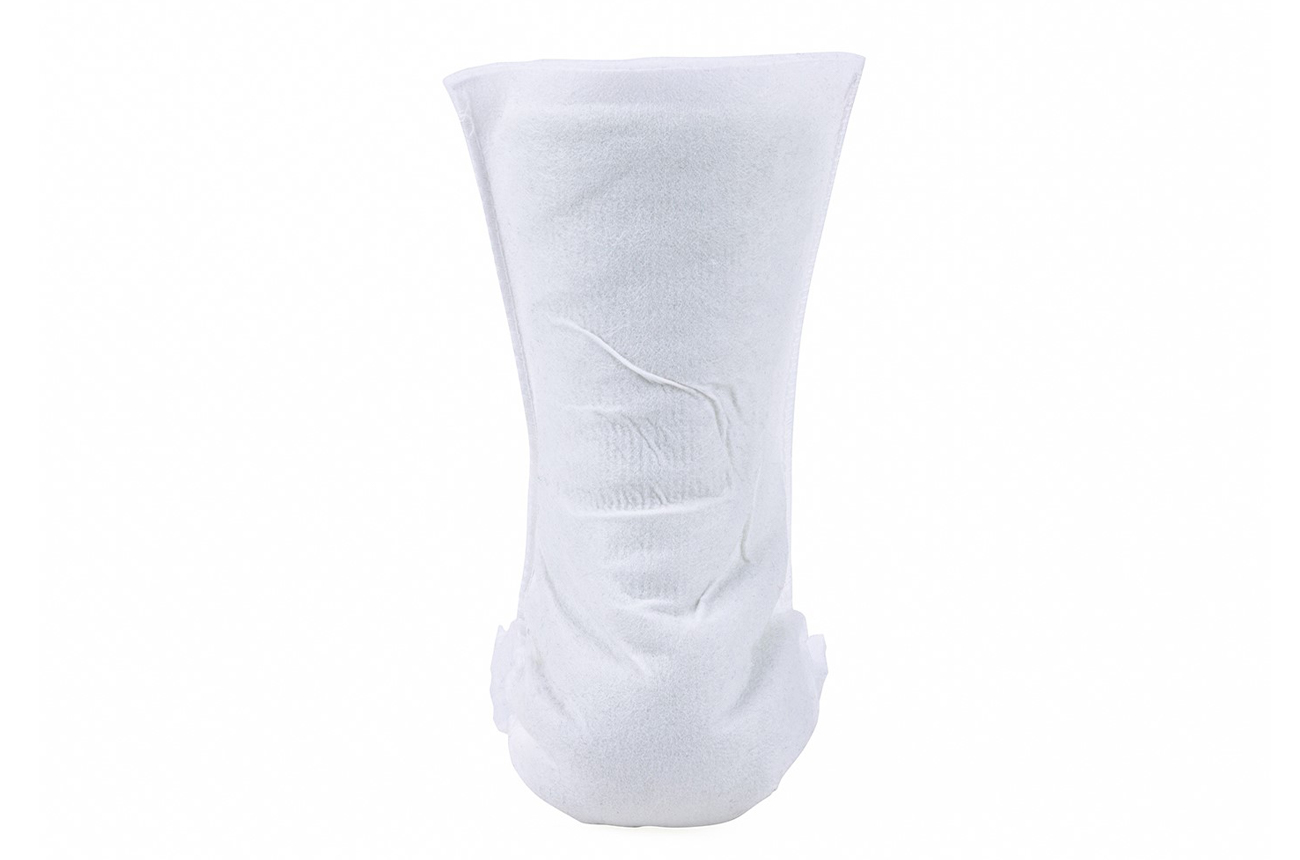

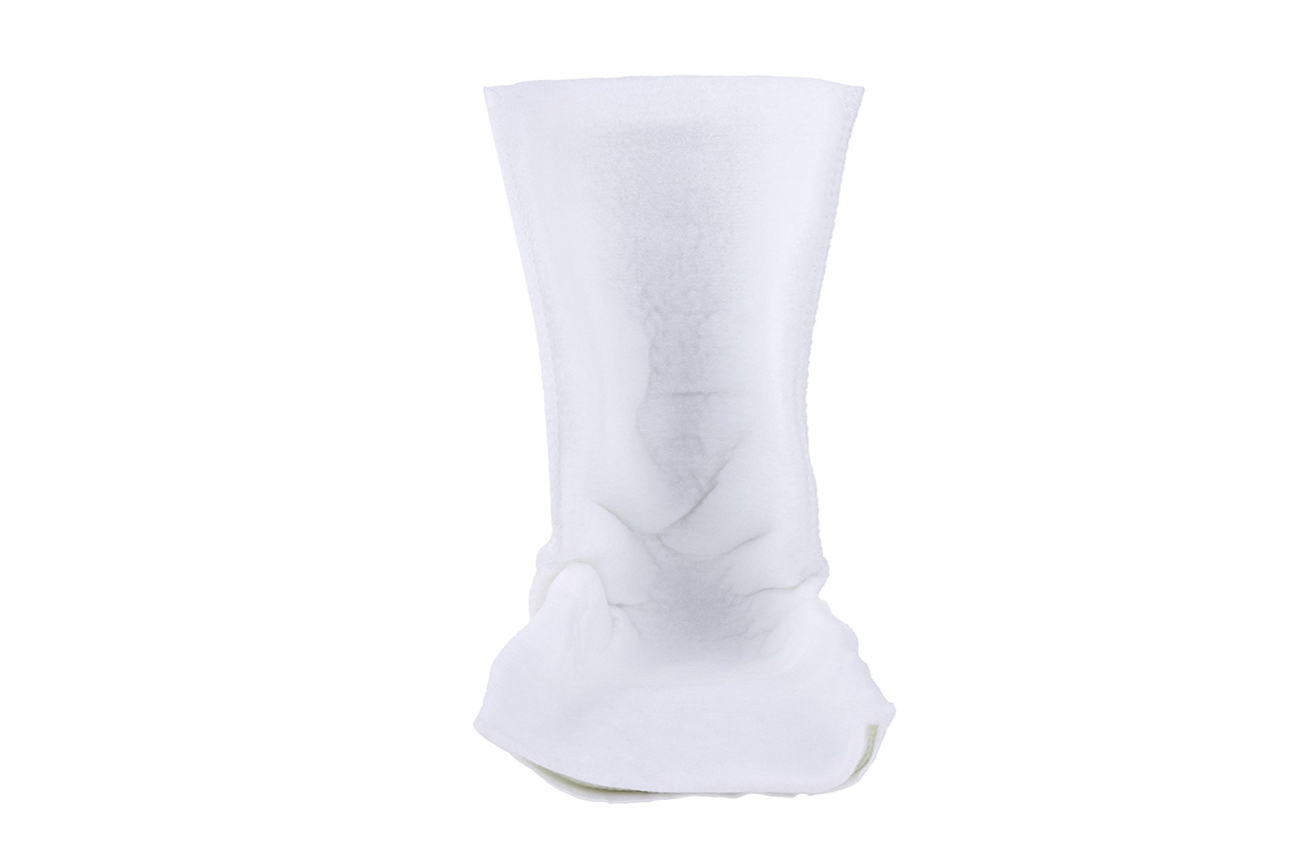

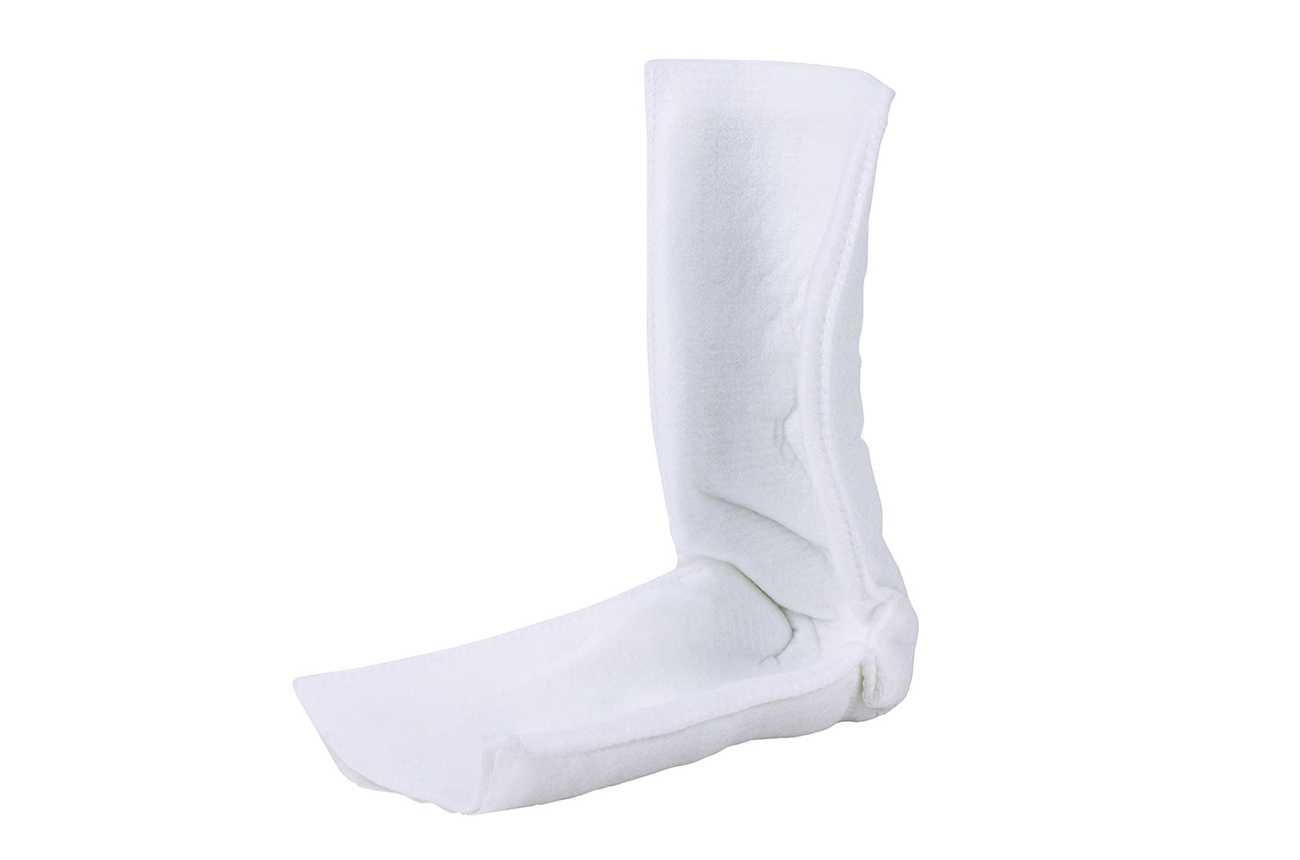

Synthetic orthopedic Splint
(Padding Splint)
Ensuring robust strength as an orthopedic medical device
Stable treatment from stable chemical reactions
Best personalized products
The most environmentally friendly splint materials
Water activated polyurethane resin that does not smear on the glove and it not sticky
A competitive price for quality
Deliveries to global distribution companies in the U.S., Japan
Strength from Optimized Resin-Applied Laminated Structures
Use premium raw materials to achieve the best condition as a medical device
Increase the effectiveness of treatment as a medical device with tight comfort
97% to 100% incineration rate
Use of Korean surfactant ingredients and catalysts
Corporate mission
Demonstrate excellence in price, quality and production management
Overview An orthopedic pad splint is the most representative orthopedic splint, and it is a Class One medical device product that plays a fixed role in limiting movement in damaged areas for emergency, before and after surgery, and for mild sprain treatment.
Main raw materials and subsidiary materials Processed glass fiber fabric, polyester fabric, non-woven upper paper, lower paper, meddle layer, water-activated polyurethane resin, additive, pouch
How to use
01
Wear a glove and have the patient wear a skin protector that is appropriate for the affected area. (Optional)
02
Prepare a synthetic orthopedic splint of the size suitable for the patient's affected area, quickly put it in water, wet it, and take it out to remove moisture. Or, spread the splint and wet only the glass fiber/polyester fabric/non-woven fabric impregnated with water-activated polyurethane resin.
03
Wrap the elastic bandage around the affected area and fix it to the body.
04
Follow the doctor's instructions during the treatment period, do not stop using it arbitrarily, and keep the same posture for 10 to 30 minutes and wait to support your weight.
Precautions
1. Be careful not to get resin on your body or clothes. If it's on, erase it with acetone.
2. After molding for 3 to 5 minutes, make a good model and rub it well to increase the adhesive strength between the fabrics.
3. Synthetic orthopedic splint (Pad Splint) is a single-use medical device.
| Roll Size | Fabric | Color Index |
|---|---|---|
| 2in x 5yds(5.0cm x 450cm) | 2in x 10in(5.0cm x 25cm) | Non-woven fabric for upper, lower layer. Fiberglass or Polyester fabric |
| 3in x 5yds(7.5cm x 450cm) | 3in x 12in(7.5cm x 30cm) | |
| 3in x 35in(7.5cm x 87.5cm) | ||
| 4in x 5yds(10.0cm x 450cm) | 4in x 15in(10.0cm x 37.5cm) | |
| 4in x 30in(10.0cm x 75cm) | ||
| 5in x 5yds(12.5cm x 450cm) | 5in x 30in(12.5cm x 75cm) | |
| 5in x 45in(12.5cm x 112.5cm) | ||
| 6in x 5yds(15.0cm x 450cm) | 6in x 30in(15.0cm x 75.0cm) | |
| 6in x 45in(15.0cm x 112.5cm) |
